Electrolyte
Module
THE FUTURE OF DIRECT ISE – HIGH THROUGHPUT WITHOUT MAINTENANCE
The EXIAS m|1 Electrolyte Module is an advanced direct ISE solution designed for seamless integration into clinical chemistry systems. It provides precise and dilution-free measurements of Na+, K+, and Cl- in undiluted plasma, urine, and serum - ensuring independent workflows for ISE and photometry.
With autonomous ISE calibration, the m|1 minimizes carousel involvement while its thick-film technology measures ionic activity directly, reducing the risk of Pseudohyponatremia. Offering the smallest sample volume and highest throughput in its class, the m|1 Electrolyte Module is redefining ISE in clinical chemistry with its ease of use, maintenance-free operation, and outstanding performance.
3 PARAMETERS
Na+
K+
Cl–
Extended panel on request: pH, Ca2+, (calculated nCa2+)
20 µL
Most volume efficient direct ISE-module on the market
400 test/hour
Fastest direct ISE module on the market

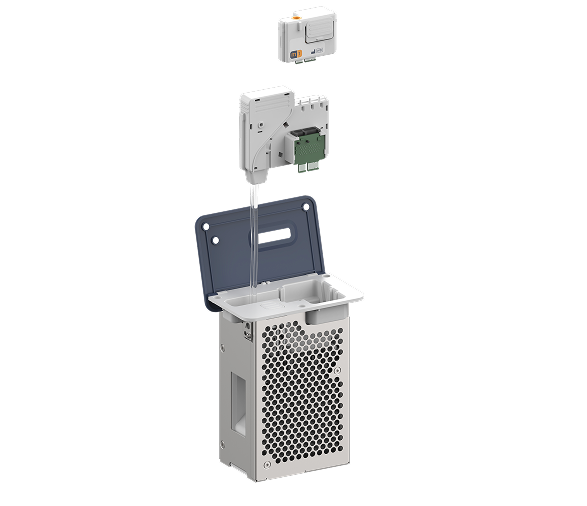

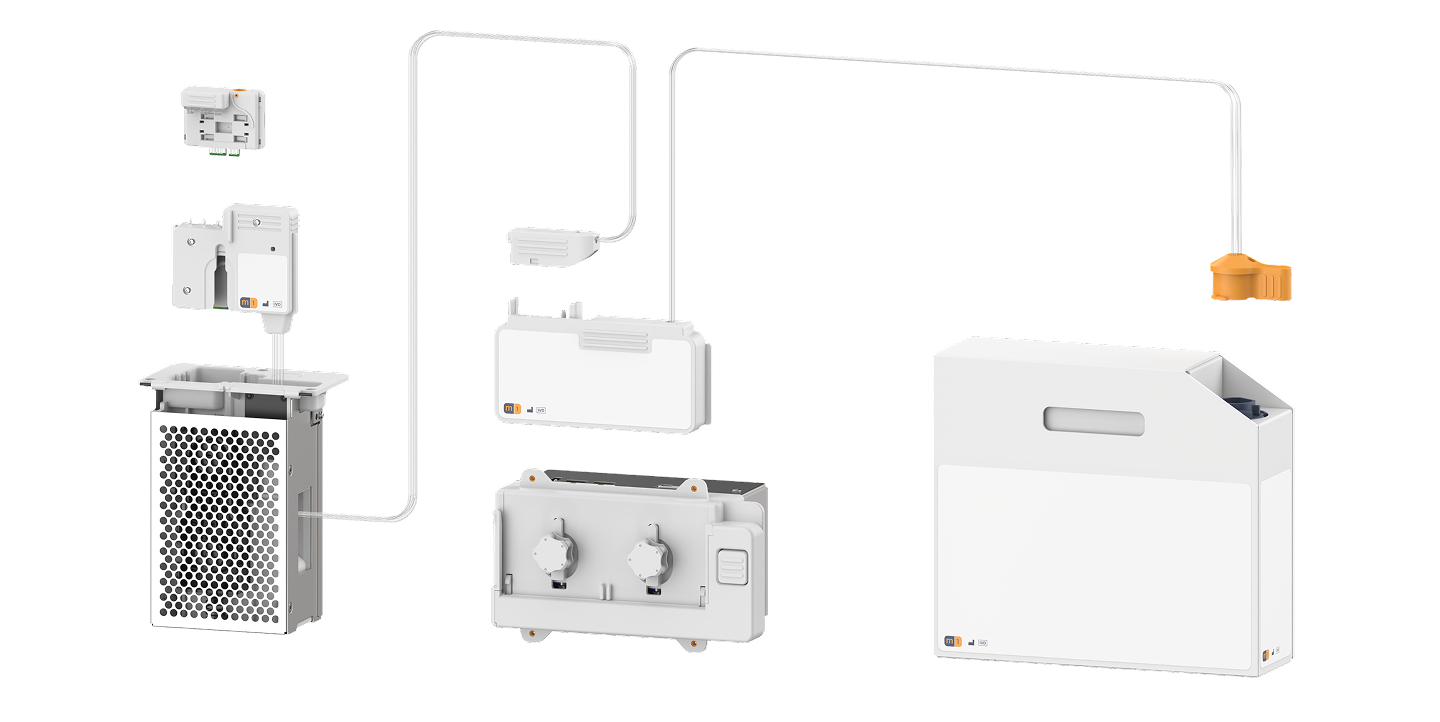

EASY INTEGRATION

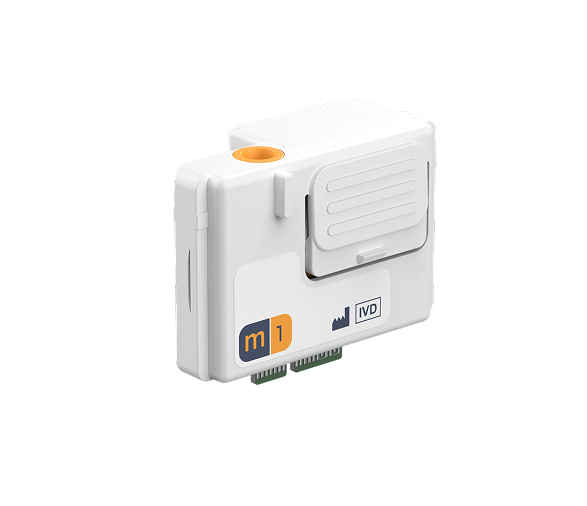

Snap-in m|1 Multi Sensor Cassette
Sample container
- Basic panel: Na+, K+ Cl-
- Extended panel: pH, Ca2+ & calculated nCa2+
Throughput
- 400 tests / hr (basic panel)
- 27 sec / sample
Calibration
- 30 sec
- Interval: 4hr / every 100 samples
m|1 Multi Sensor Cassette
- 6000 tests/sensor cassette
(up to 9000 tests)

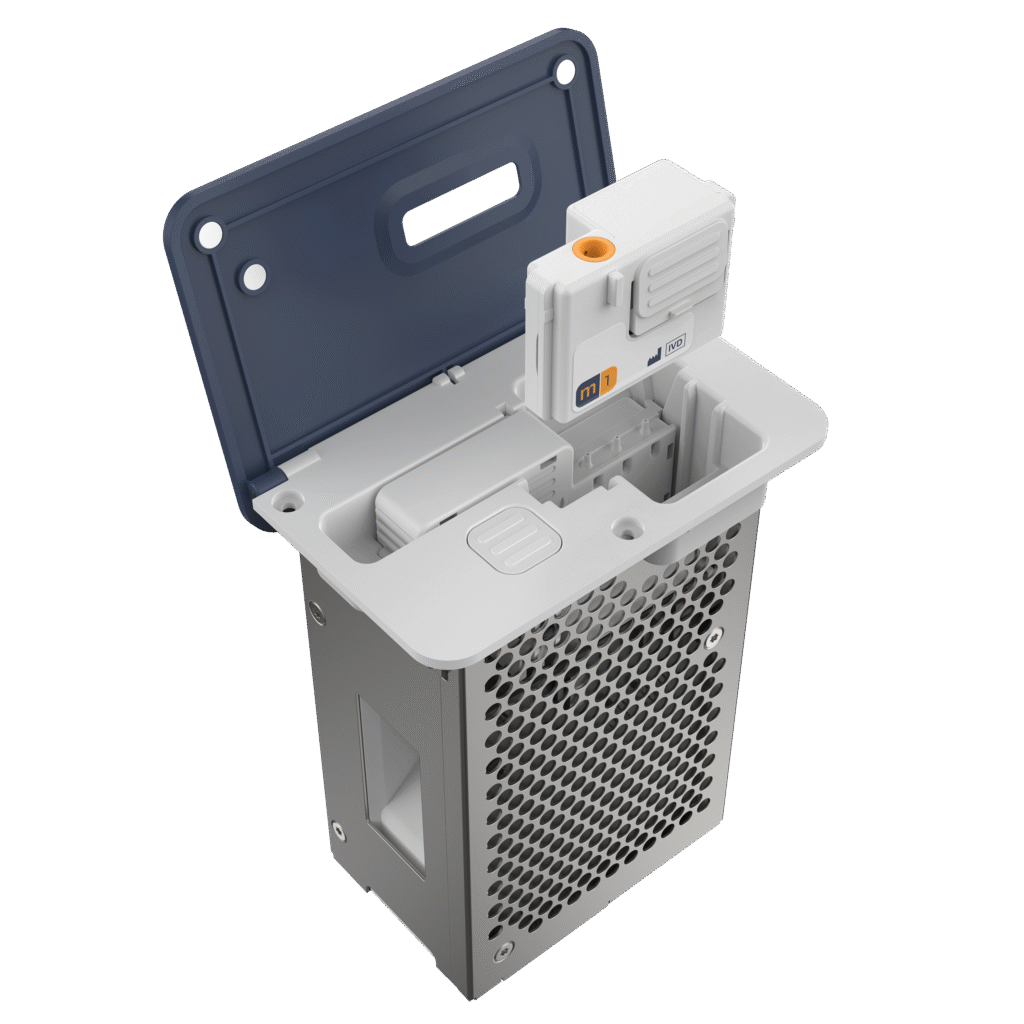

Dimensions Frontend
- Dimensions frontend module: 95 x 163,3 x 65 mm (W x H x D)

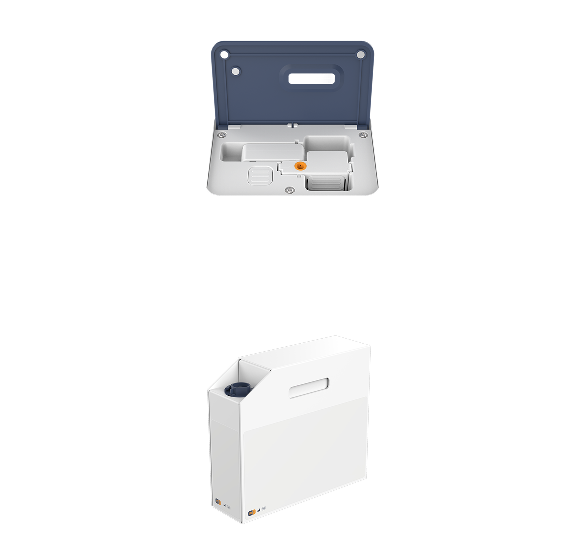

Dimensions Fluid Pack
- Dimensions m|1 Fluid Pack: 70 x 159 x 222 mm (W x H x D)
