Electrolyte
Analyzer
ZERO MAINTENANCE AND MAXIMUM RELIABLITY

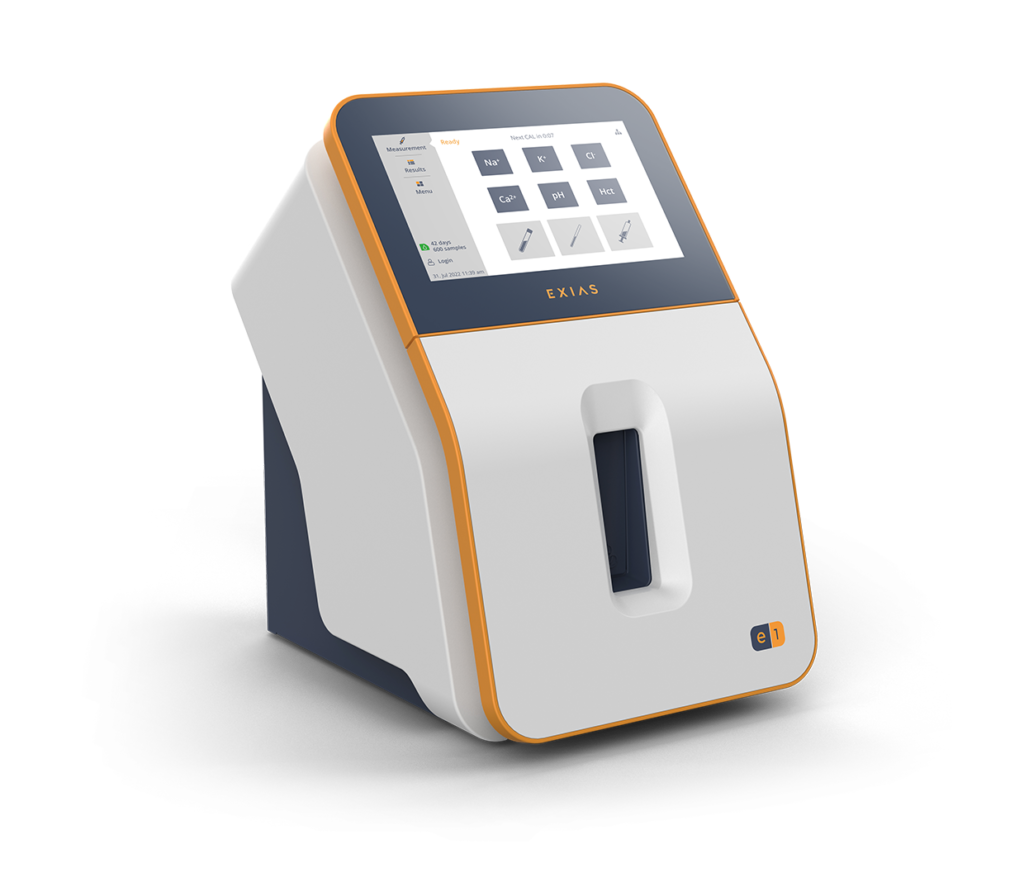

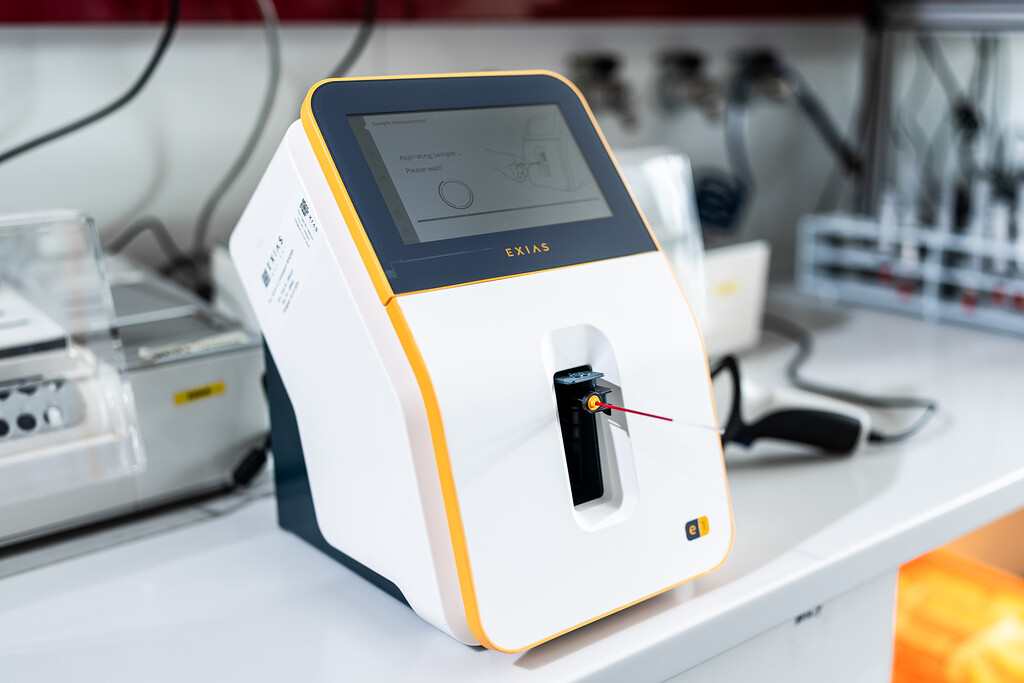

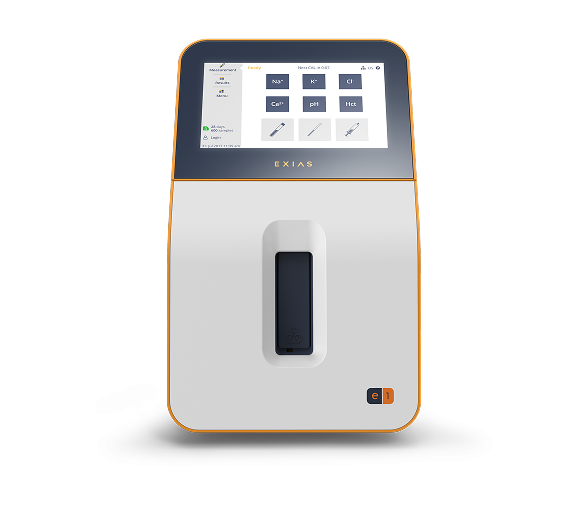

The EXIAS e|1 Analyzer is an electrolyte system intended for in-vitro measurements of Na+, K+, Cl-, Ca2+ as well as pH and Hct, in human whole blood, serum, plasma, undiluted urine and aqueous solutions.
Combining high accuracy, user-friendly operation, and a maintenance-free design, the e|1 Analyzer delivers reliable performance while streamlining workflow. Its robust yet compact design makes the e|1 Analyzer ideal for both point-of-care environments and laboratory settings, offering flexibility without compromising precision or efficiency.
6 PARAMETERS
Na+
K+
Cl–
Ca2+
ph
Hct
+ 4 CALCULATED PARAMETERS
nCa2+, tHb(c), 24 h urine, HCO3–(c)
FLEXIBLE SAMPLE INPUT
20 µL
Lowest sample volume
25 sec
Fastest time to result
ON-BOARD QUALITY CONTROL
Fully programmable (3 levels)

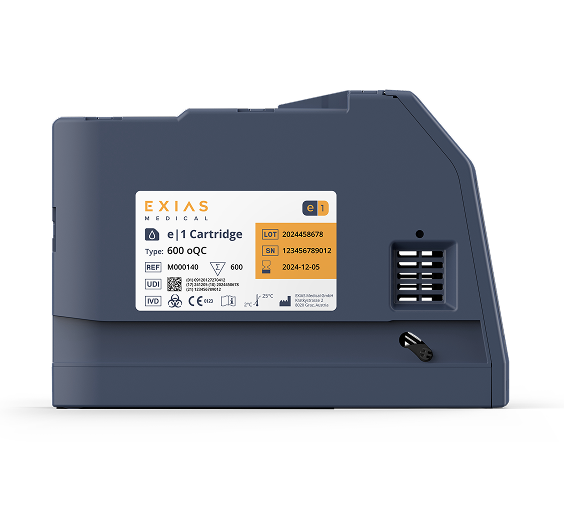

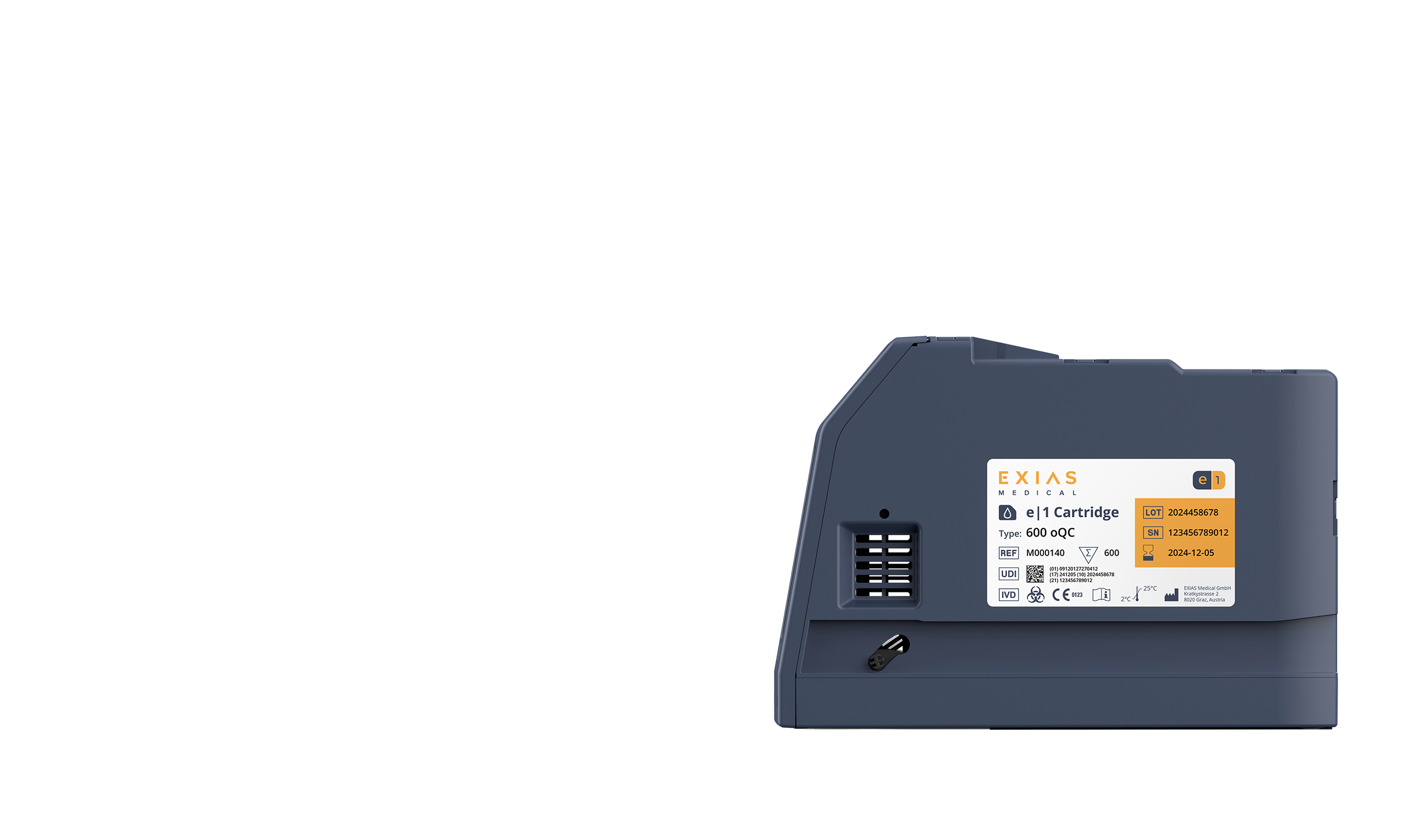

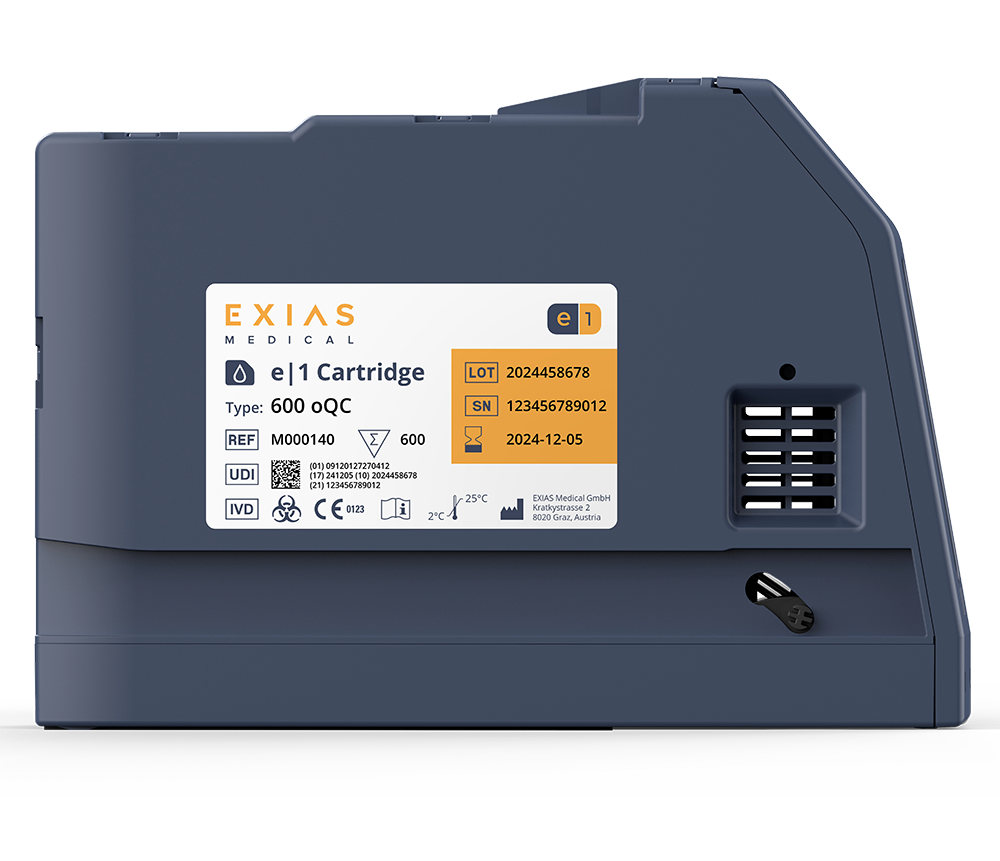

DIFFERENT CARTRIDGE SIZES
- 600 samples / 42 days
- 300 samples / 42 days
- 150 samples / 42 days
- 100 samples / 42 days

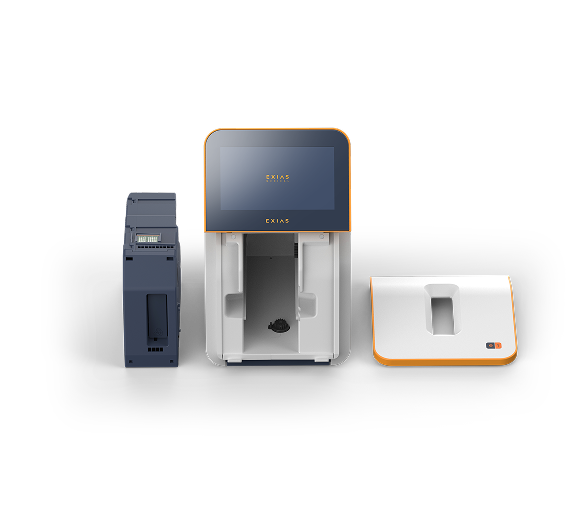

Whether you manage a busy hospital lab, outpatient clinic, or specialized medical facility, the e|1 Electrolyte Analyzer and its compact all-in-one Cartridge integrate effortlessly into your workflow. It delivers accuracy, efficiency, and reliability, and ensures fast, confident results when you need them most.
OPERATIONAL BENEFITS

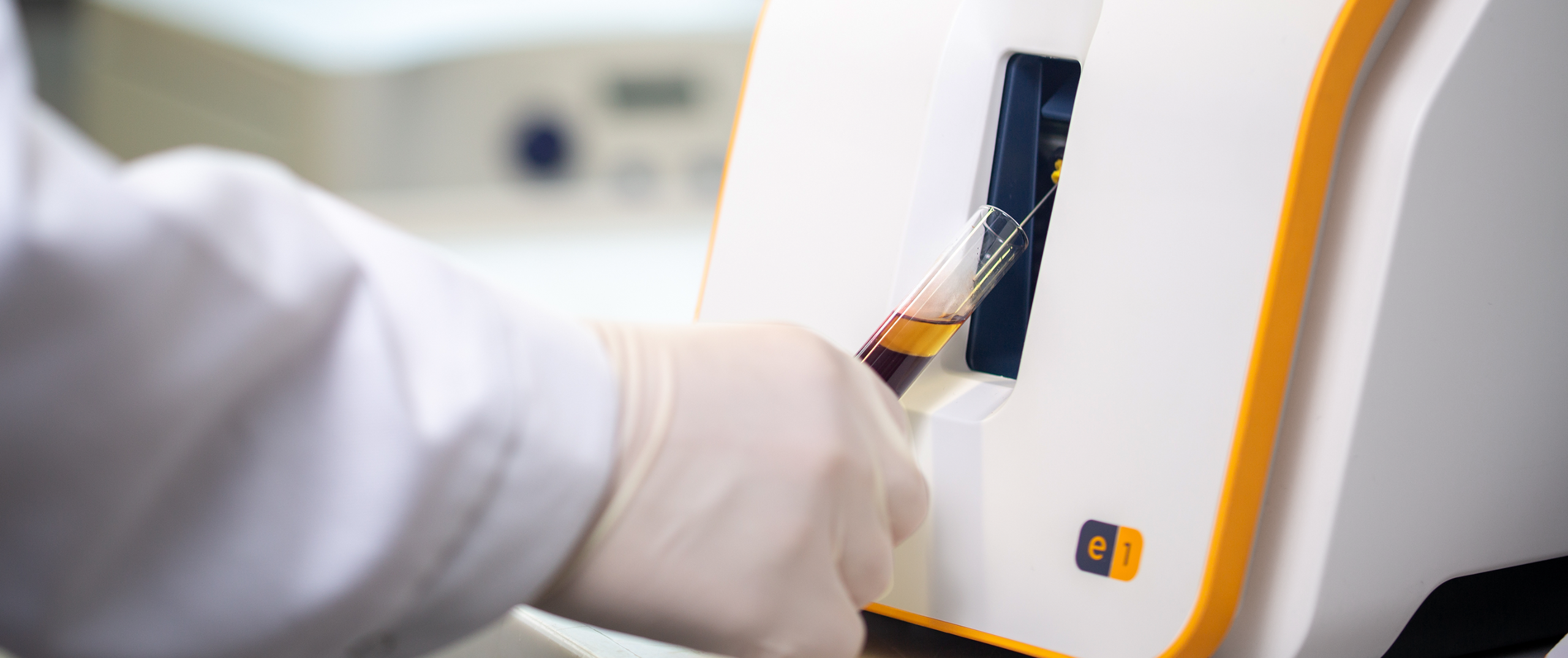

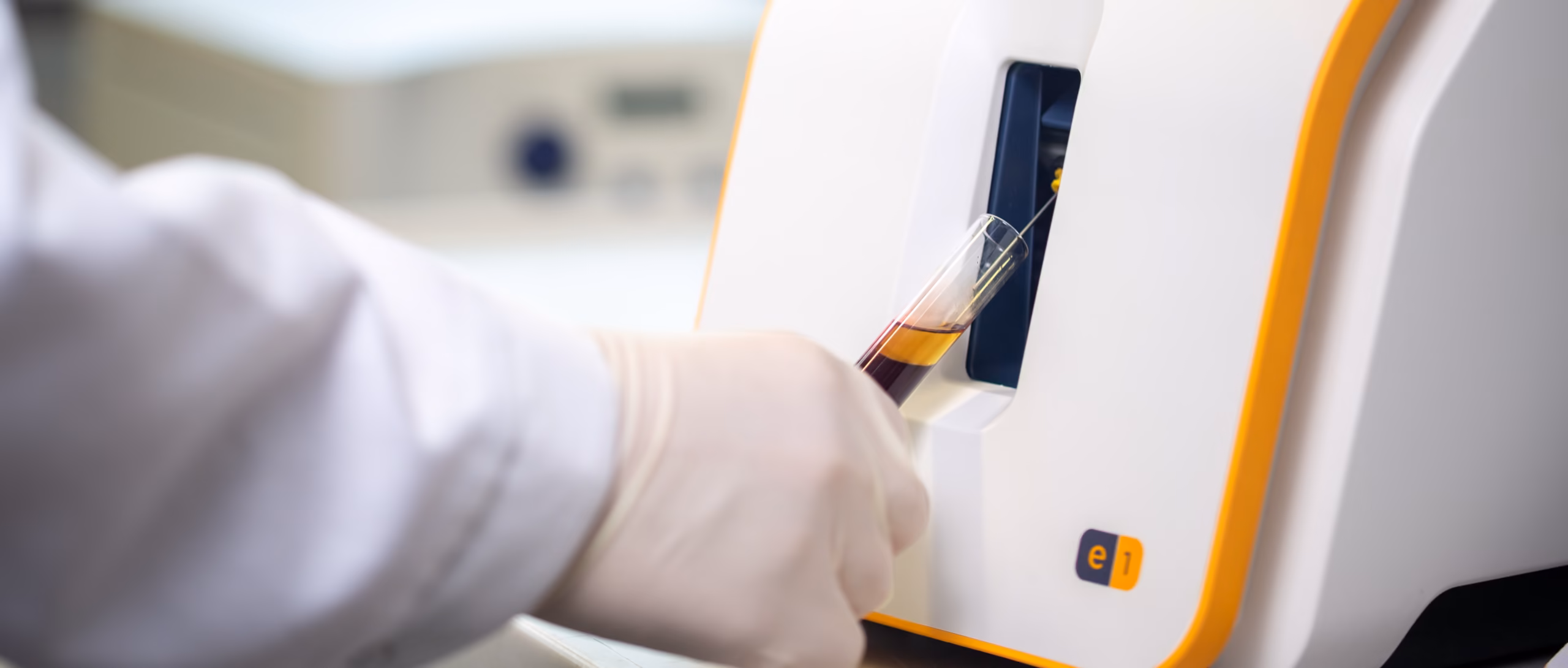

Flexible sample input, without adapter
- Sample tube
- Capillaries
- Syringes
Quality control
- Integrated on-board QC (oQC) - fully programmable (3 levels)
- Alternatively to oQC: manual QC (3 levels)
- Levey-Jennings-Chart
- External Quality Assurance
Smart design
- Touch Display 7’’ / 800 x 480 px
- Dimensions 20 x 31 x 28 cm (W x H x D)
- Built-in thermal printer
Calibration
- 30 sec. for 2-point calibration
- Interval: 4, 8, 12 h (programmable)

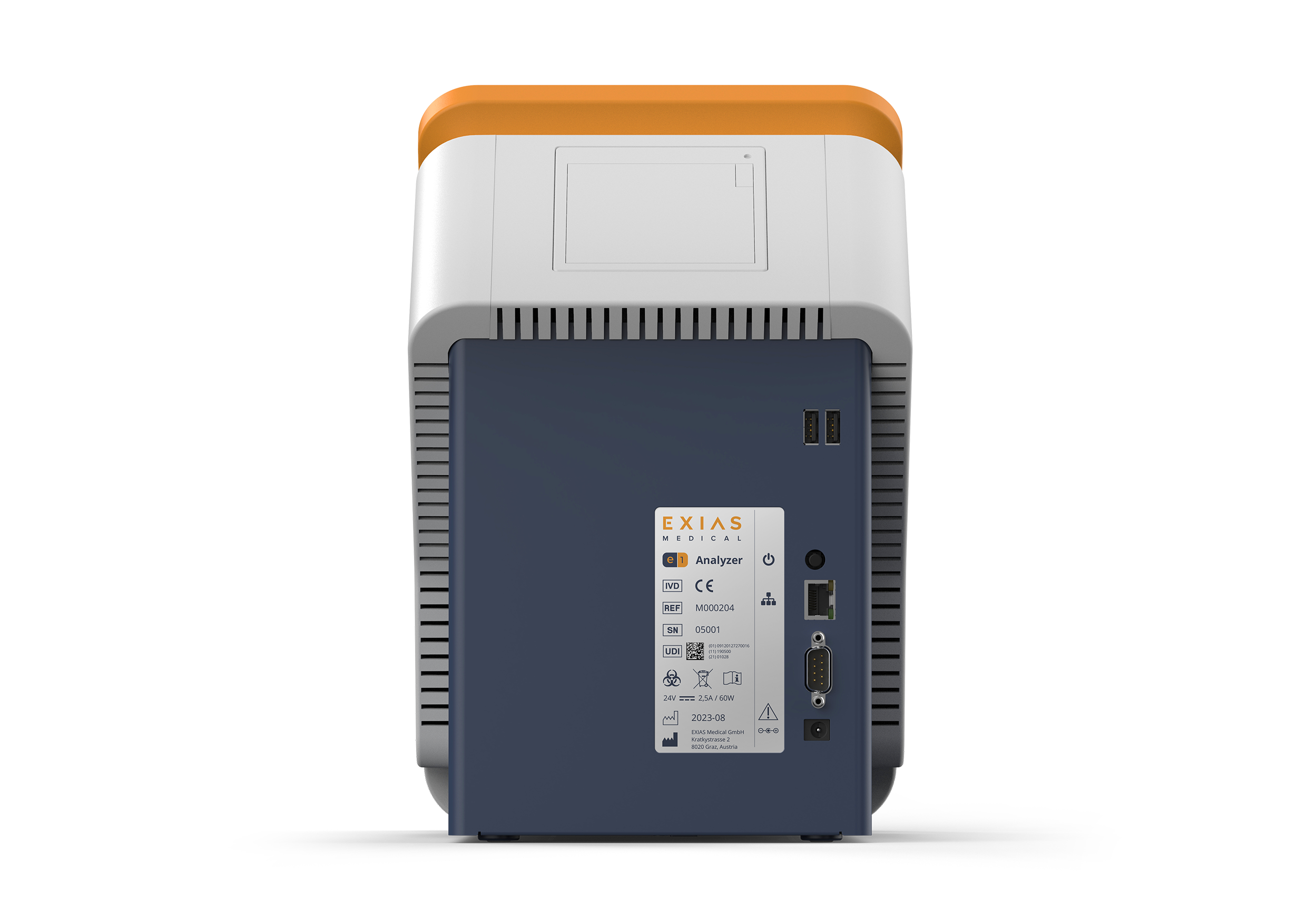

Full connectivity
- Data exchange with LIS according to LIS2-A2 protocol (ASTM)
- Export of data to USB flash drive (results, settings, etc.)
- Network connection via LAN (RJ45)
- Optional: barcode reader
